WEIGHT REDUCTION MACHINE

Description

WEIGHT REDUCTION / SCOURING MACHINE
(Single vessel multi chamber design)

TECHNICAL FEATURE:

• Capacity: 200Kg. & 400 Kg., 600 Kg. & 800 kg.
• Max. working temperature 98° C.
• Single vessel multi chamber.
• Filter design for easy cleanup even during the process.
• Vessel made from AISI SS 316 L highly corrosion resistance stainless steel.
• Fabric drive reel with A.C. motor & frequency controller.

EXCLUSIVE FEATURE:

• Liquor ratio 1:5 to 1:7 (wet fabric)
• Lowest running cost per kgs. of fabric.
• Process of 30 to 350 gms./sq. meter of fabric no variation, because of both alkali solution and the fabric are being circulated forcefully, no hanger pin trace, no selvage stretching and overlapping.
• Cane save more than half of supply water, cooling water, waste water and steam due to it’s unique structure.
• Good working environment with closed structure due to on scattering steam and no dropping water.
• Time and temperature programming facility with memory for various fabric quality.

OPTIONAL FEATURE:

• Fully automatic with PLC.
• Flow meter
• Seam Detector

OTHER TEXTILE FABRIC DYEING AND PROCESSING FABRIC MACHINERY.

• U Type Jet Fabric Dyeing Machine.
• U Type Jet Fabric Dyeing Machine With Reel.
• Ht. Hp. Soft Flow Fabric Dyeing.
• Atmospheric Soft Flow Fabric Dyeing Machine.
• Rapid Long Bottom Tube Fabric Dyeing Machine.
• Log Top Tube Fabric Dyeing Machine.
• Fabric Weight Reduction / Scouring Machine.
• Relax Rotary Fabric Drum Washer Machine.
• Jigger Fabric Dyeing Machine.
• Fabric Beam Dyeing Machine.
• Hydro Extractor Machine
• Fabric Washing / Dyeing Winch Machine.

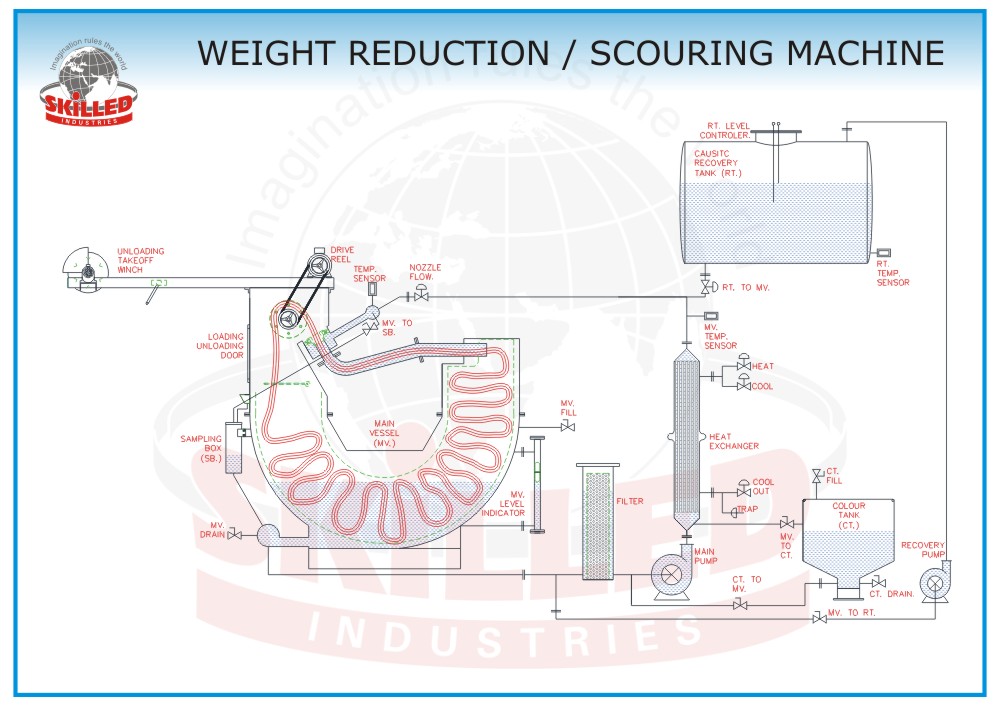

Schematic Diagram
