JIGGER DYEING MACHINE

Description

JIGGER DYEING MACHINE

Semi-Automatic Jigger machines are one of the most versatile bleaching and dyeing solutions for open-width fabric in the textile industry. It is widely used for pre-and post-treatments of fabric.

PRODUCT DESCRIPTION:

• Heavy duty mild steel main walls.
• Economical for production requirements.
• High Speed working.
• Crease free working.
• Suitable Tension remains throughout the process.
• Ball bearing type Adjustable brakes of adequate size with Ratchet and on individual batch rollers ensures minimum fabric tension.
• Heavy duty pendulum or rocket type balancer completely made from stainless steel.
• Suitable for light, medium and heavy quality of fabrics width between 900mm to 1800mm with one or two standards of fabrics depending upon width machine of fabrics.
• Capacity: 100 kgs,200 Kg., 250 Kg., 300 Kg., 500 Kg.

SAILENT FEATURE:

• All Liquor carrying parts are manufactured from 316L and 304 Quality Stainless steel
• Frequency Controlled Motor And Drive system
• Low liquor ratio and liquor consumption
• 316L SS direct and Indirect Heating Coil
• Heavy-duty SS floating Device and Tension Pipe
• Stainless Steel Cladded / Ebonite Coated Main Roll
• Heavy duty Floating device made from Stainless Steel
• Robust Stainless steel Guide rolls
• Also Available Single and Double drive System

ADDITIONAL FEATURES:

• The electrical Panel and control Unit can be manufactured from stainless steel
• Automatic Dual Temperature controller for precise and constant Liquor temperature
• Liquor Circulation system
• Automatic reverse and Forward System
• Dosing Tank
• Water Level Controller
• Pneumatic batching Device
• Main structure available in Stainless Steel or Cast Iron
• Loading/Unloading system
• Direct Mounted Reduction Gearbox Drive
• Steam injector

OTHER TEXTILE FABRIC DYEING AND PROCESSING FABRIC MACHINERY.

• U Type Jet Fabric Dyeing Machine.
• U Type Jet Fabric Dyeing Machine With Reel.
• Ht. Hp. Soft Flow Fabric Dyeing.
• Atmospheric Soft Flow Fabric Dyeing Machine.
• Rapid Long Bottom Tube Fabric Dyeing Machine.
• Log Top Tube Fabric Dyeing Machine.
• Fabric Weight Reduction / Scouring Machine.
• Relax Rotary Fabric Drum Washer Machine.
• Jigger Fabric Dyeing Machine.
• Fabric Beam Dyeing Machine.
• Hydro Extractor Machine
• Fabric Washing / Dyeing Winch Machine.

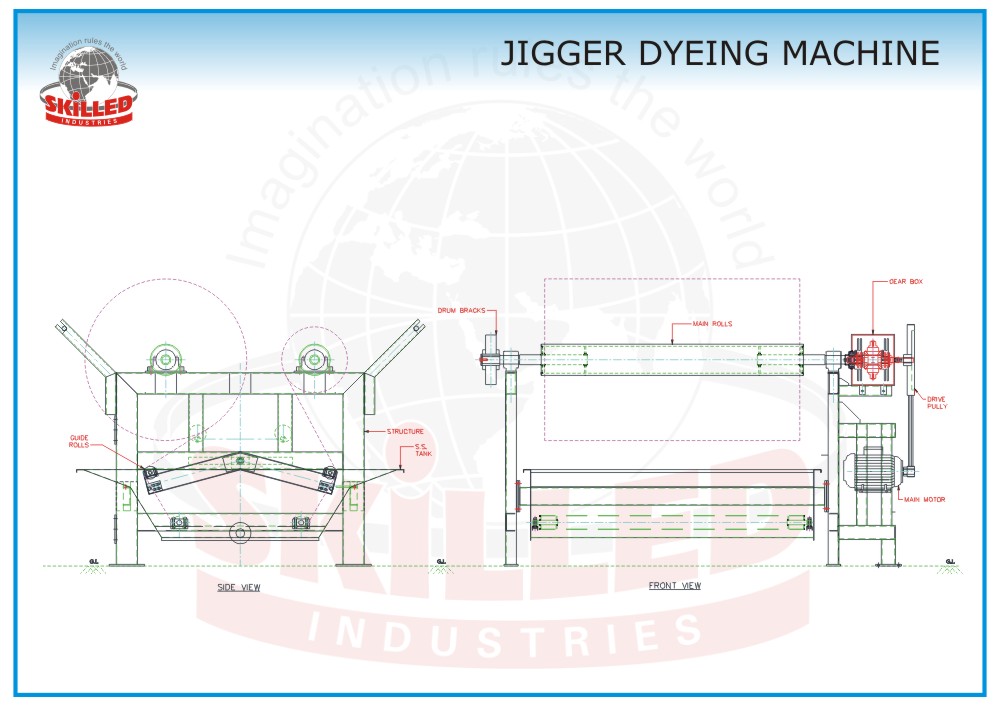

Schematic Diagram
