Description
Product details

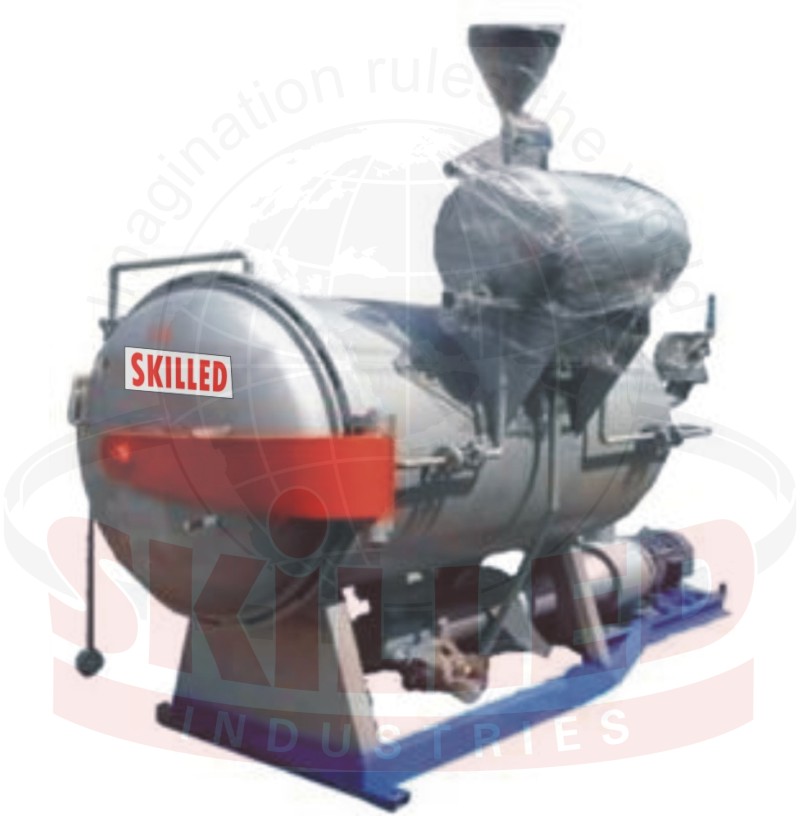

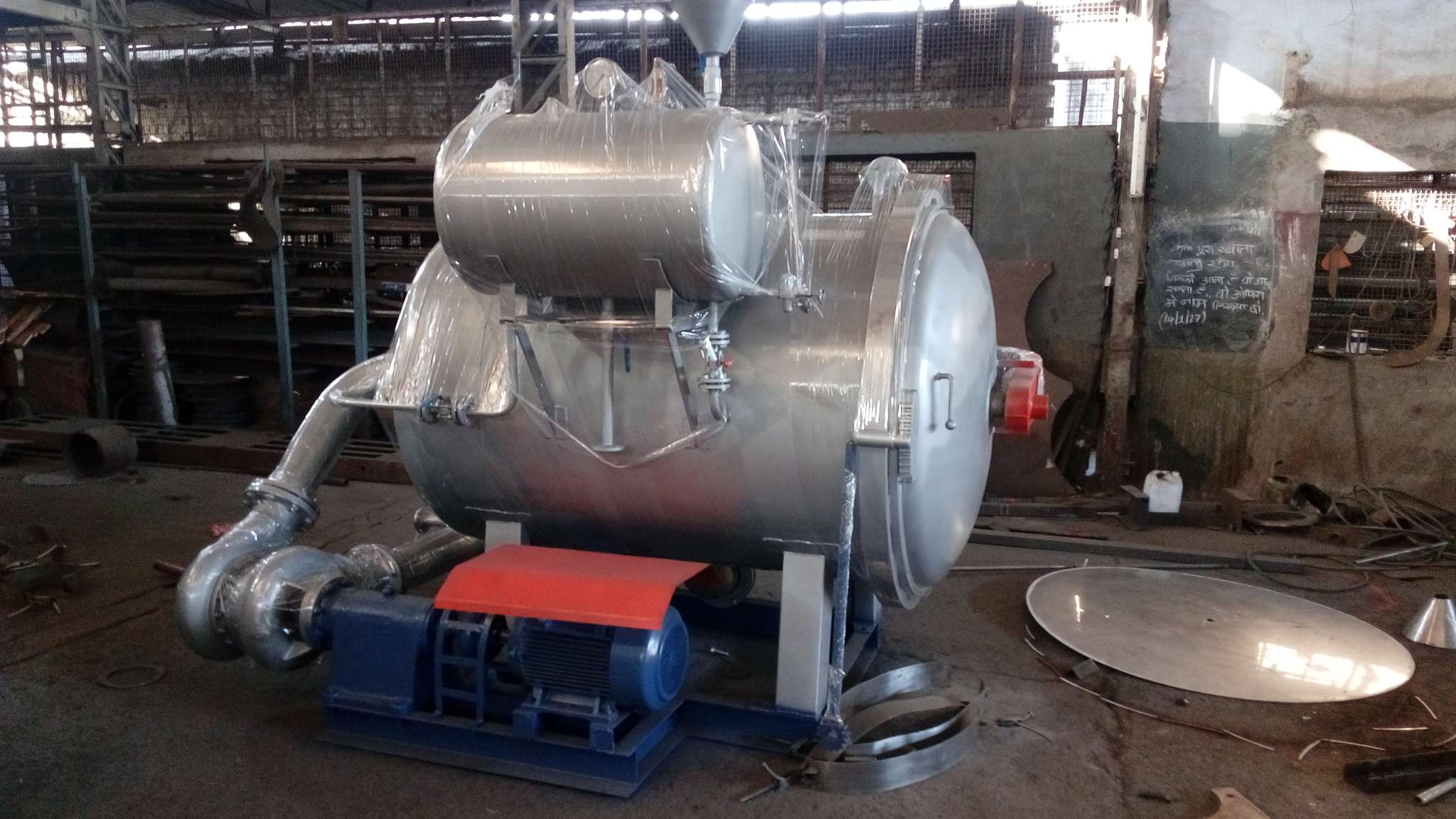

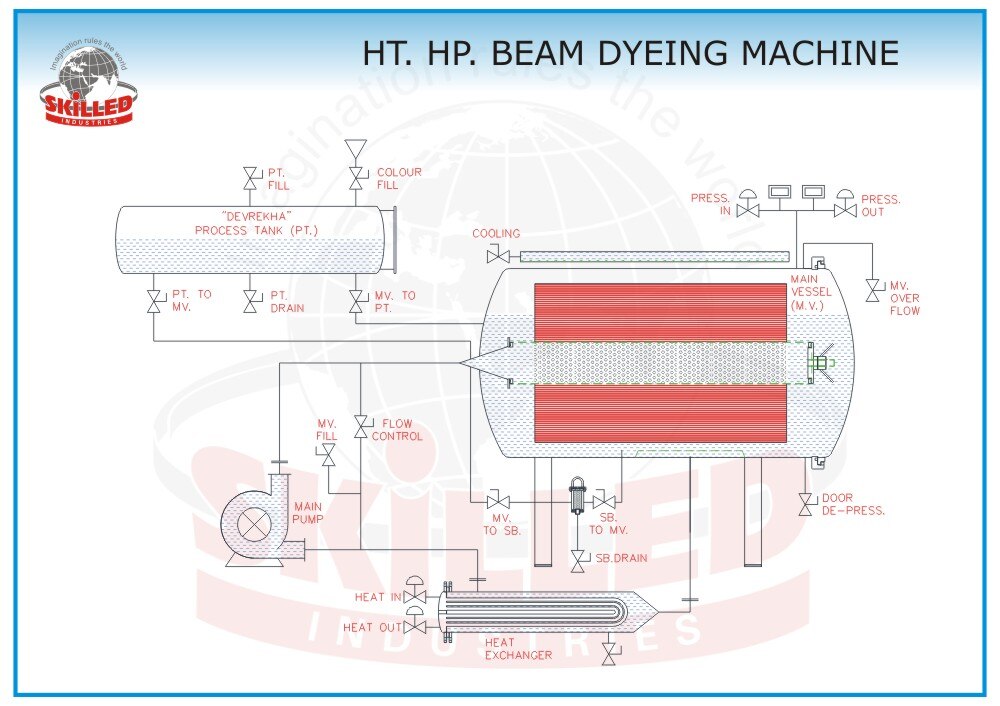

H.T.H.P. BEAM DYEING MACHINE PRODUCT DESCRIPTION: • Process woven & knitted fabrics in open width. • Beam: Ø.250 /300 mm x 1500/1800 mm long. • High Temp. Up to 140° C. • Vessel : S.S. 316 L • Duel head design, Multi flow, High Pressure Centrifugal Pump for Dye-Liquor in & out circulation. • Capacity: 100 Kg., 200 Kg., 250 Kg. EXCLUSIVE FEATURES: • Reduce power consumption • Reduce thermic energy • Reduce maintenance • Lowest running cost. Capacity (KG) Vessel Dia (Inch) Process Tank (Ltr.) Length (mm) Working Length (mm) Width (mm) Height (mm) 125 to 150 42” 120 1830 4200 2000 2000 250 to 300 48” 240 1830 4200 2000 2200 OTHER TEXTILE FABRIC DYEING AND PROCESSING FABRIC MACHINERY. • U Type Jet Fabric Dyeing Machine. • U Type Jet Fabric Dyeing Machine With Reel. • Ht. Hp. Soft Flow Fabric Dyeing. • Atmospheric Soft Flow Fabric Dyeing Machine. • Rapid Long Bottom Tube Fabric Dyeing Machine. • Log Top Tube Fabric Dyeing Machine. • Fabric Weight Reduction / Scouring Machine. • Relax Rotary Fabric Drum Washer Machine. • Jigger Fabric Dyeing Machine. • Fabric Beam Dyeing Machine. • Hydro Extractor Machine • Fabric Washing / Dyeing Winch Machine. For more details E-mail : skilledindustries@gmail.com Mobile / WhatsApp NO.: 8347006771
