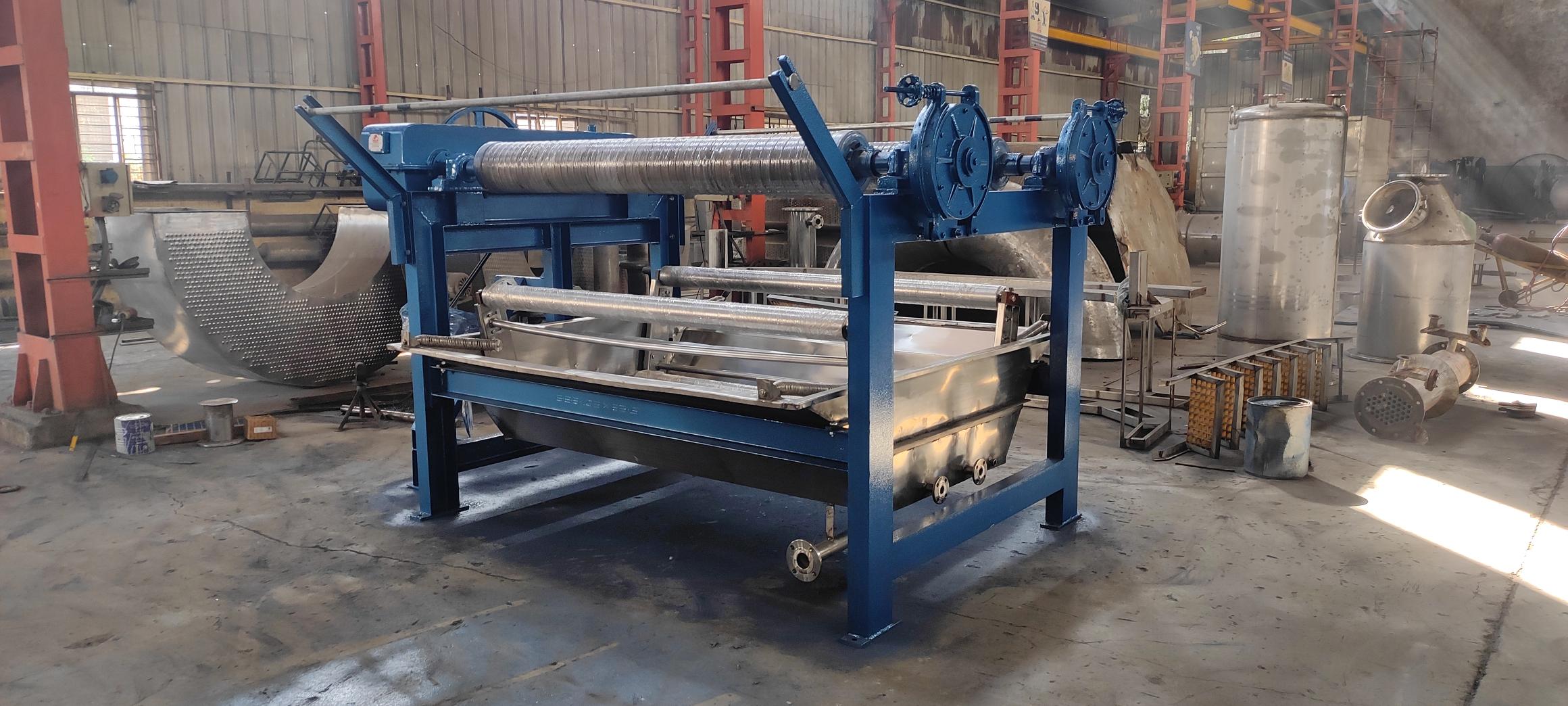

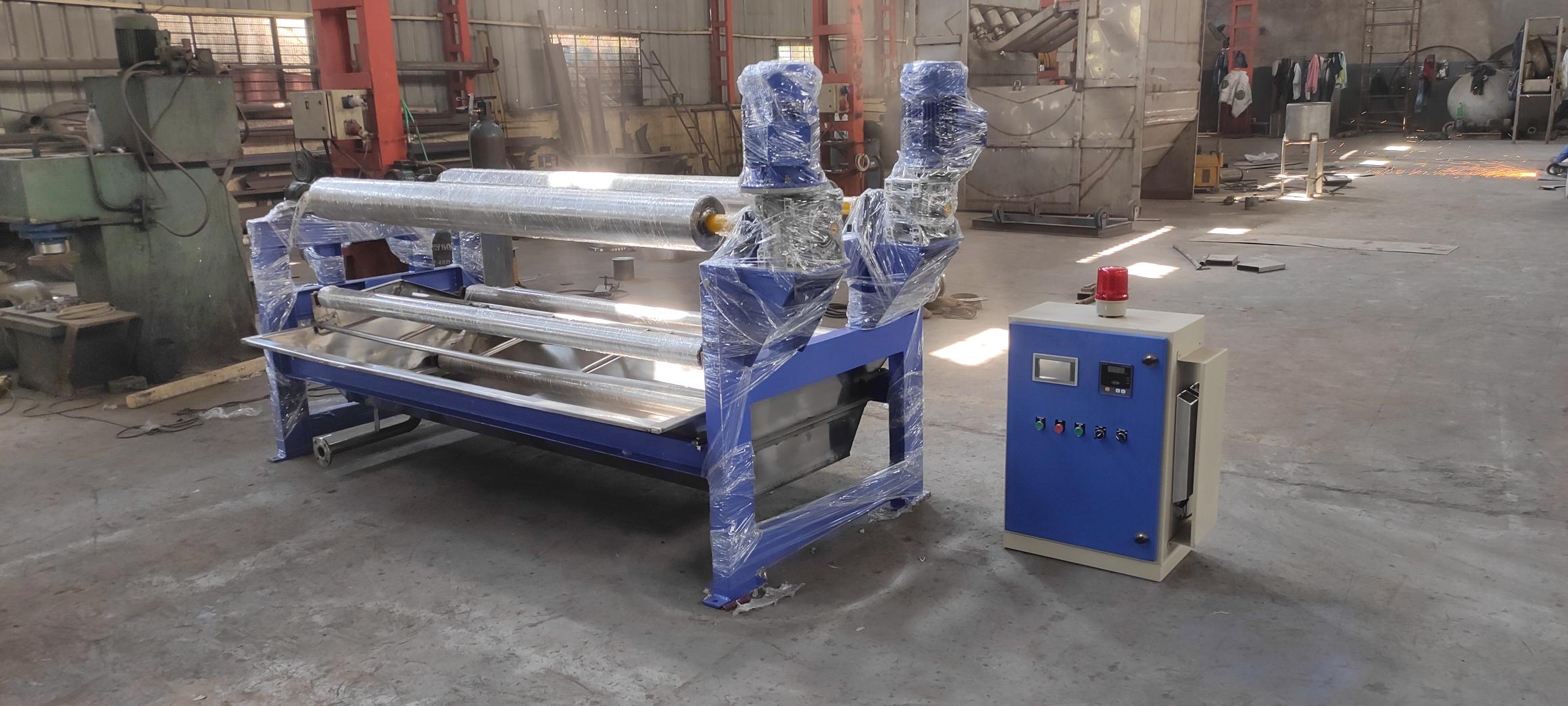

JIGGER DYEING MACHINE Semi-Automatic Jigger machines are one of the most versatile bleaching and dyeing solutions for open-width fabric in the textile industry. It is widely used for pre-and post-treatments of fabric. PRODUCT DESCRIPTION: • Heavy duty mild steel main walls. • Economical for production requirements. • High Speed working. • Crease free working. • Suitable Tension remains throughout the process. • Ball bearing type Adjustable brakes of adequate size with Ratchet and on individual batch rollers ensures minimum fabric tension. • Heavy duty pendulum or rocket type balancer completely made from stainless steel. • Suitable for light, medium and heavy quality of fabrics width between 900mm to 1800mm with one or two standards of fabrics depending upon width machine of fabrics. • Capacity: 100 kgs,200 Kg., 250 Kg., 300 Kg., 500 Kg. SAILENT FEATURE: • All Liquor carrying parts are manufactured from 316L and 304 Quality Stainless steel • Frequency Controlled Motor And Drive system • Low liquor ratio and liquor consumption • 316L SS direct and Indirect Heating Coil • Heavy-duty SS floating Device and Tension Pipe • Stainless Steel Cladded / Ebonite Coated Main Roll • Heavy duty Floating device made from Stainless Steel • Robust Stainless steel Guide rolls • Also Available Single and Double drive System ADDITIONAL FEATURES: • The electrical Panel and control Unit can be manufactured from stainless steel • Automatic Dual Temperature controller for precise and constant Liquor temperature • Liquor Circulation system • Automatic reverse and Forward System • Dosing Tank • Water Level Controller • Pneumatic batching Device • Main structure available in Stainless Steel or Cast Iron • Loading/Unloading system • Direct Mounted Reduction Gearbox Drive • Steam injector OTHER TEXTILE FABRIC DYEING AND PROCESSING FABRIC MACHINERY. • U Type Jet Fabric Dyeing Machine. • U Type Jet Fabric Dyeing Machine With Reel. • Ht. Hp. Soft Flow Fabric Dyeing. • Atmospheric Soft Flow Fabric Dyeing Machine. • Rapid Long Bottom Tube Fabric Dyeing Machine. • Log Top Tube Fabric Dyeing Machine. • Fabric Weight Reduction / Scouring Machine. • Relax Rotary Fabric Drum Washer Machine. • Jigger Fabric Dyeing Machine. • Fabric Beam Dyeing Machine. • Hydro Extractor Machine • Fabric Washing / Dyeing Winch Machine. For more details E-mail : skilledindustries@gmail.com Mobile / WhatsApp NO.: 8347006771
